Features
Oil radar for offshore and onshore installations
Oil spill detection radar can be used in offshore and onshore installations together with standard navigation radar.
The installation can be done onboard the vessels, oil rigs or any other platform where the radar is needed to detect oil spills.
Mark oil spills
The Oil Radar detects oil spills automatically and creates a polygon to mark the spill. You can also mark the oil spills manually with polygons and update them whenever it is required.
You can also take screenshots from the screen and record the raw radar video to the external hard disc or memory stick for future evaluation or training purpose.
Process and analyze raw radar video

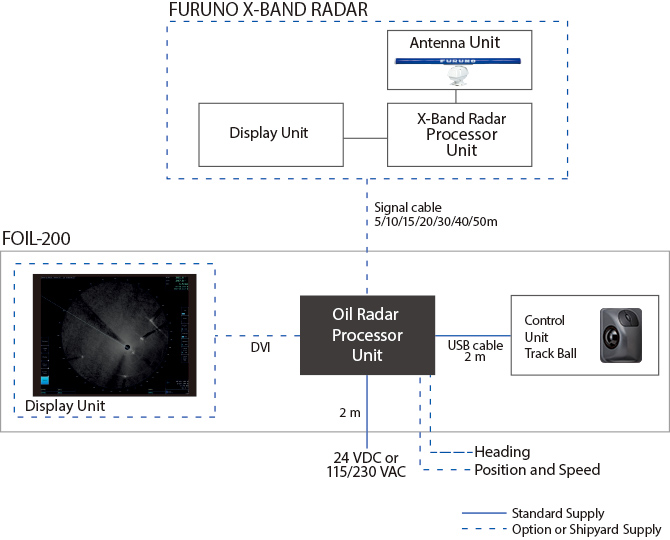

FOIL-200 uses raw radar video from the navigation radar. The special high performance algorithm is used to process and analyze the raw video to detect oil spills.
To achieve the most efficient image to detect oil, you can change between different Fusion modes and see the result in real time on the screen. Oil spill image is created with an integration of multiple radar antenna scans. Generated image is based on motion compensated Fusion scans. Adjust the Fusion Scan number together with Fusion Mode.
